In modern electronic devices and power transmission systems, wires play an indispensable role. As an important component of wires, wire shielding materials act as a strong defense line, ensuring the stable operation of wires and reliable transmission of signals.
1、 The function of wire shielding materials
The main function of wire shielding materials is to prevent electromagnetic interference (EMI) and radio frequency interference (RFI). In today's complex electromagnetic environment, various electronic devices interweave with each other, generating electromagnetic and radio frequency signals that can easily interfere with the current and signal transmission in wires. This interference may cause signal distortion, data transmission errors, and even affect the normal operation of the equipment. Wire shielding materials can block external interference signals through their own characteristics, while preventing electromagnetic signals generated inside the wire from leaking out, thereby ensuring the stability and accuracy of the current and signal transmitted by the wire.
2、 Common types of wire shielding materials
Metal shielding material

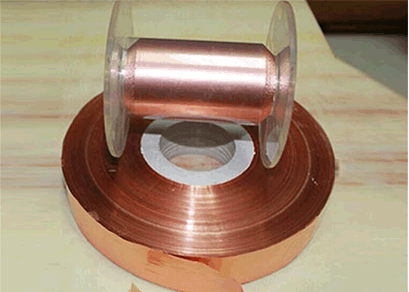

Copper foil shielding: Copper has good conductivity and high shielding effectiveness, and is a commonly used metal shielding material. Copper foil shielding is usually tightly wrapped around the insulation layer of the wire in a thin sheet shape, which can effectively block electric field interference. In high-frequency signal transmission wires, such as communication cables, copper foil shielding can reduce signal attenuation and distortion, ensuring high-speed and stable signal transmission.
Aluminum foil shielding: Aluminum foil is also a common shielding material, with relatively low cost and light weight. Aluminum foil shielding is widely used in some cost sensitive application scenarios, such as ordinary power cords and some audio cables. Although aluminum foil has slightly lower conductivity than copper, it can still provide good shielding in low-frequency electromagnetic interference environments.
Braided shielding: Metal braided shielding is the process of weaving metal wires into a mesh structure and wrapping it around the insulation layer of a wire. Common weaving materials include copper wire, tin plated copper wire, etc. Braided shielding not only has good flexibility, making it easy to bend and install wires, but also performs well in all-round electromagnetic shielding, capable of blocking interference from both electric and magnetic fields. Braided shielding has been widely used in some wires that require frequent movement or bending, such as data cables inside computers, mobile phone charging cables, etc.
Conductive polymer shielding material
With the development of materials science, conductive polymers have gradually emerged as a new type of wire shielding material. Conductive polymers have the advantages of light weight, good processability, low cost, as well as certain conductivity and shielding properties. Some conductive polymers can further improve their shielding effectiveness by compounding with other materials. For example, combining conductive polymers with carbon nanotubes can enhance the conductivity and mechanical properties of the material, and has potential application value in some electronic devices that require high weight and flexibility for internal wires.
3、 Performance characteristics of wire shielding materials
Shielding effectiveness: Shielding effectiveness is a key indicator for measuring the performance of wire shielding materials, which represents the ability of shielding materials to block electromagnetic interference. The higher the shielding effectiveness, the more effectively the material can block external interference signals from entering the interior of the wire, while preventing signal leakage inside the wire. Different types of shielding materials have varying shielding effectiveness under electromagnetic interference at different frequencies. For example, metal shielding materials typically have high shielding effectiveness in the high frequency range, while conductive polymer shielding materials may exhibit better performance in the mid to low frequency range.
Flexibility: For many wire applications, especially those that require frequent bending and movement, the flexibility of shielding materials is crucial. Flexible shielding materials can adapt to various bending deformations of wires without problems such as breakage or detachment, thereby ensuring the stability of the shielding effect. Braided shielding materials and some new flexible conductive polymer shielding materials have outstanding flexibility and can meet the needs of these special applications.
Corrosion resistance: Wires may come into contact with various chemicals and harsh environmental conditions during use, so shielding materials need to have a certain degree of corrosion resistance. Metal shielding materials such as copper foil, aluminum foil, etc. are prone to corrosion in humid, acidic, and alkaline environments, which affects the shielding performance and the service life of wires. To solve this problem, surface treatment such as tin plating, zinc plating, etc. is usually carried out on metal shielding materials to improve their corrosion resistance. Conductive polymer shielding materials have unique advantages in environments with strong chemical corrosiveness, as they are not easily corroded by chemical substances.
4、 The development trend of wire shielding materials
High performance: With the continuous development of electronic technology, the performance requirements for wire shielding materials are becoming increasingly high. In the future, wire shielding materials will develop towards higher shielding efficiency and wider frequency range shielding to meet the strict requirements of electromagnetic shielding in emerging fields such as 5G communication and high-speed data transmission. For example, developing new nano composite materials and utilizing the special properties of nano materials to further improve the comprehensive performance of shielding materials.
Multifunctionality: In addition to basic electromagnetic shielding functions, wire shielding materials will also develop towards multifunctionality. For example, shielding materials with self-healing capabilities can automatically repair minor damage and maintain the stability of shielding performance; Shielding materials that have multiple functions such as fire prevention, waterproofing, and antibacterial will also receive more attention and application in some special application scenarios.
Green environmental protection: In today's increasingly environmentally conscious society, the research and application of green and environmentally friendly wire shielding materials have become a trend. Traditional metal shielding materials may cause certain pressure on the environment during production and recycling processes, while new conductive polymer shielding materials and some biodegradable shielding materials, due to their low energy consumption, pollution-free production process, and easy recycling or degradation at the end of their service life, will have broader market prospects.
As an indispensable part of the wire system, the performance and application of wire shielding materials are crucial for ensuring the normal operation of electronic devices and power transmission systems. With the continuous advancement of technology, wire shielding materials will continue to innovate and develop, providing stronger support for the future development of the electronic information industry and the power industry.
